QFP80
In developing your designs, please ensure the datasheet.
| Mounting | Surface Mount | |
|---|---|---|
| Pins | 80 | |

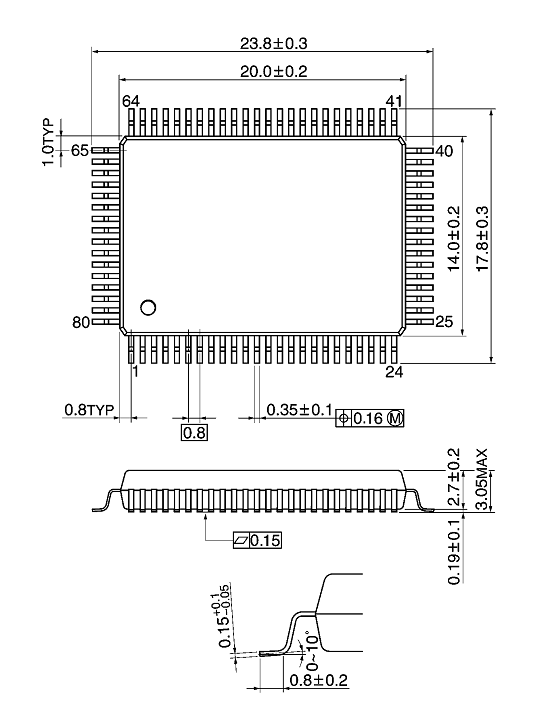

| Package Dimensions (mm) / Land pattern dimensions for reference only (mm) |

|
|
| Package | QFP80-P-1420-0.80B | |

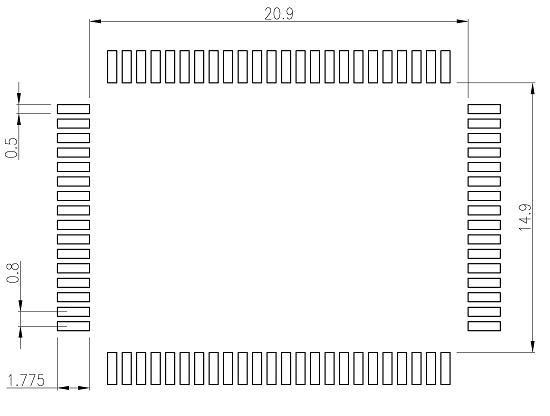

| Land pattern | QFP80-P-1420-0.80B_LP | |
| Thermal resistance (℃/W) | 38.7 | |
| Packing Method | Tray Packaging | |
| Minimum Quantity | 40 pcs/Tray | |

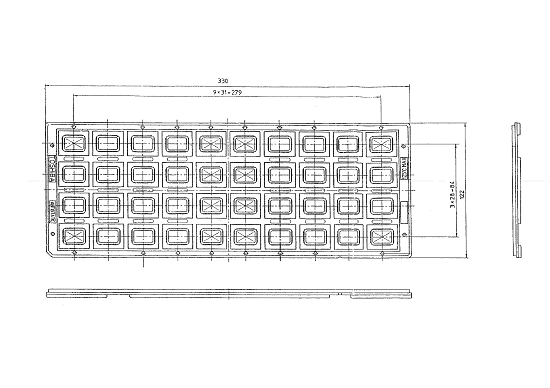

| Tray Dimensions (mm) |
|
|
| Semiconductor Package Mount Manual |
MountingGuide | |
